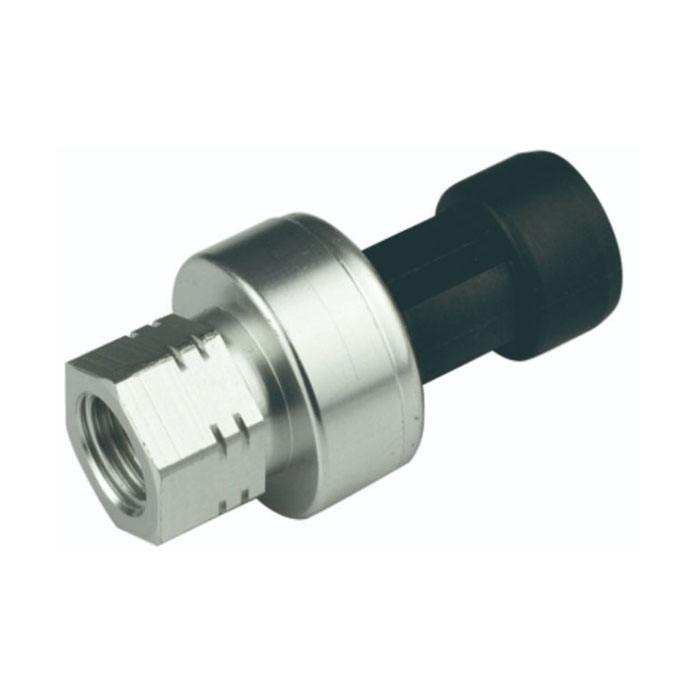

Automotive air conditioning pressure sensor
Air conditioning pressure sensor can measure the refrigerantpressure of the air conditioning system, and for EUc to actthe real-time
Description
Summary
- Air conditioning pressure sensor can measure the refrigerantpressure of the air conditioning system, and for EUc to actthe real-time monitoring optimizing the controlling strategy,reducing the idle speed, saving energy consumption.
- Air conditioning system of high accuracy,can guarantee the ECU to implement optimization control strategy;
- According to customer selection, there is a PWM or voltage output interface type;
- Ceramic capacitor structure,fast response,good compatibility of medium.
Product Features
- Operating pressure range: 0-3.6Mpa（range is adjustable）
- Accuracy:+1.0%F.S. (Linearity,Hysteresis,Repeatability,Calibration)
- Total error band:±1.5%F.S.(-20°C~+85℃）；±2.5%F.S.(-40℃~+135℃)
- Operating temperature:-40℃~+135℃
- Storage temperature:-40℃~+150℃
- Rotect pressure: 5.4Mpa
- Burst pressure:7.2Mpa
- Operating medium: HFC134a, PAG Oil
- Life cycle: 5 million cycles
- Vibrating: 11g(50-2000Hz)
- Ngress Protection: IP65
- Apply voltage: 5.0+0. 25VDC
- Output voltage: 0.5-4.5VDC( Can be adjusted within 5VDC
- Supply current: 10mA(Maximum)
- Loat impedance: 10KQ(Typical)
- Output response time: 3ms
- Overvoltage protection: 16VDC
- Reverse voltage protection: -14VDC
- Short-circuit protection: Yes
- MC withstand (512MHZ-1GHz): 50V/m
- MC withstand(1MHz–512MHz): 100V/m
- SD withstand: 15KV
