Description

Summary

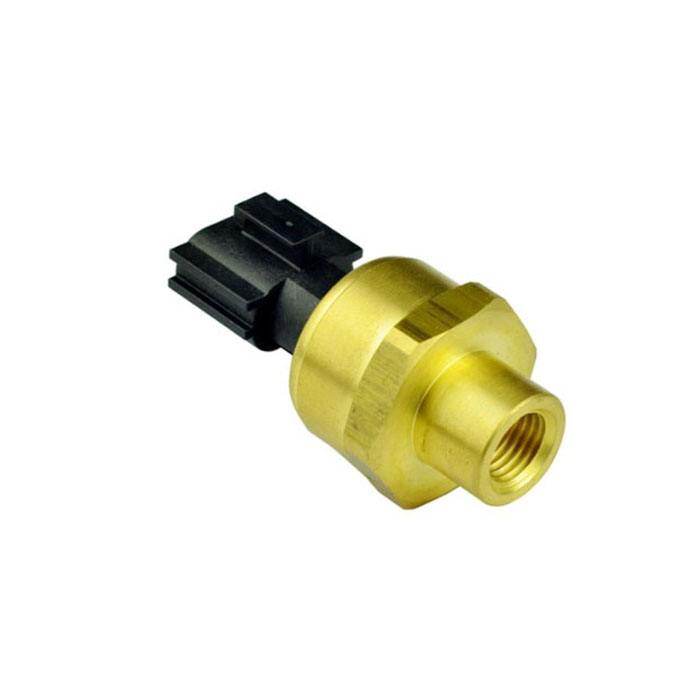

• Measure the refrigerant pressure in air conditioning system.
• Excellent accuracy and help to finish the Intelligence ofauxiliary air conditioning system;
• Good reliability and long service life.

Product features

• Operating pressure range:0~4.6Mpa(range is adjustable)
• Accuracy: ±1.5%F.S.(Linearity,Hysteresis,Repeatability)
• Total error band:±2.5%F.S.(-40°℃~+120°C)other high-precision versions are available
• Operating temperature: – 40°℃~+100°C
• Storage temperature: -40°℃~+120℃
• Protect pressure: 6.9Mpa
• Burst pressure:9.2Mpa
• Operating medium:R22°CR407CCR134A Refrigerant
• Life cycle: 5million cycles
• Vibrating:11g(20~2000Hz)
• Ingress Protection:IP65
• Supply voltage:5.0±0.25VDC
• Output voltage: 0.5~4.5VDC (Can be adjusted within 5vDC)
• Supply current: 10mA (Maximum)
• Load impedance: 10KQ2(Typical)
• Output response time:3mS
• Overvoltage protection: 16vDC
• Reverse voltage protection: -14vDC
• Short-circuit protection: Yes
• EMC withstand(80MHz—1000MHz):3V/m
• ESD withstand:Air 15Kv Contact 8KV Terminal 2KV
