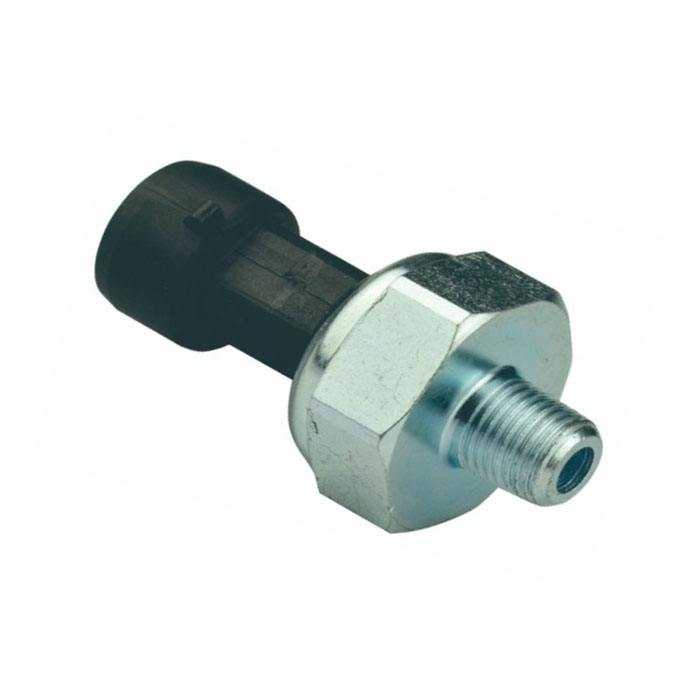

Engine oil pressure sensor
Measure the engine oil pressure, output it to the ECU, and then display it on the oil pressure gauge; When the oil pressure is too low, the ECU will alarm and take control measures to protect the engine.
Description
Summary
- Measurement of the engine oil pressure, output to ECU, and thento the oil pressure gauge shows; the engine oil pressure is toolow, the ECU will alarm and take control measures to protect theengine.
- High precision measurement, make the engine ECU can realizeaccurate measurement and control oil pressure;
- Good reliability and long service life and suitable to work underthe bad environment in the car system Good reliability and longservice life and suitable to work under the bad environment inthe car system;
- Ceramic capacitor structure, good compatibility of medium inthewhole temperature range and reliable work.
Product Features
- Operating pressure range:0~1Mpa(range is adjustable)
- Accuracy: ±1.0%F.S.(Linearity,Hysteresis,Repeatability,Calibration)
- Total error band: 土3.0%F.S.(-40℃~+150℃)other high-precision versions are available
- Operating temperature: -40℃~+150℃
- Storage temperature: -40°C~+150℃
- Protect pressure:1.5Mpa
- Burst pressure: 2.0Mpa
- Operating medium:Engine oil
- Life cycle: 3 million cycles
- Vibrating:13g(100~400Hz)
- Ingress Protection:IP65
- Supply voltage:5.0±0.25VDC
- Output voltage: 0.5~4.5vDC (Can be adjusted within 5vDc)
- Supply current: 10mA (Maximum)
- Load impedance: 10KQ(Typical)
- Output response time:3mS
- Overvoltage protection: 40VDC
- Reverse voltage protection:-40VDC
- Short-circuit protection: Yes
- EMC withstand(1MHz—400MHz):100v/m
- ESD withstand:15KV
