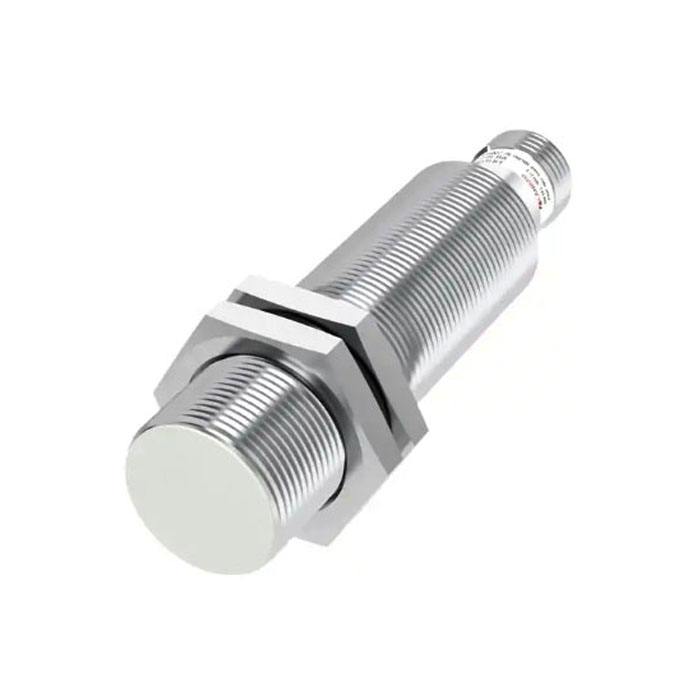

M18 Inductive sensor with connector
♦Non contact detection, safe and reliable
♦ASIC design
♦Perfect choice for metallic targets detection
Description
Product features
|
Function
|
Standard
|
Current consumption
|
≤15mA
|
|
Mounting
|
Flush
|
Circuit protection
|
Short circuit protection, overload protection, reverse polarity protection
|
|
Sensing distance
|
5mm
|
Output indicator
|
Yellow LED
|
|
Assured distance
|
0…4mm
|
Ambient temperature
|
-25°C…70°C
|
|
Standard target
|
Fe 18*18*1t
|
Ambient humidity
|
35-95%RH
|
|
Dimensions
|
M18*63mm
|
Switching frequency
|
1000Hz
|
|
Output
|
NO/NC
|
Insulation resistance
|
≥50MΩ(500VDC)
|
|
Supply voltage
|
10…30VDC
|
Vibration resistance
|
10…50Hz(1.5mm)
|
|
Residual voltage
|
≤2.5V
|
Protection degree
|
IP 67
|
|
Load current
|
≤200mA
|
Housing material
|
Nickel-copper Alloy
|
|
Certification
|
CE+UL
|
Connection
|
M12 Connector
|
