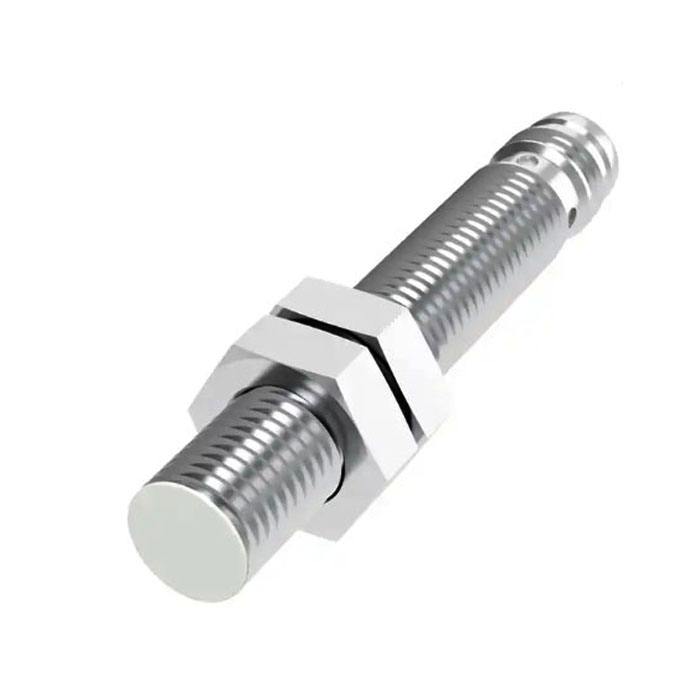

Inductive proximity switch is a type of switch composed of three parts: oscillator, switch circuit, and amplifier output circuit. The oscillator generates an alternating magnetic field. When the metal target approaches this magnetic field and reaches the sensing distance, eddy currents are generated within the metal target, leading to oscillation attenuation and even stopping.
Product features
|
Mounting
|
Flush
|
Current consumption
|
≤10mA
|
|
Rated distance[Sn]
|
1.5mm
|
Circuit protection
|
Short-circuit, overload and reverse polarity
|
|
Assured distance[Sa]
|
0…1.2mm
|
Output indicator
|
Yellow LED
|
|
Dimensions
|
M8*49mm
|
Ambient temperature
|
-25°C…70°C
|
|
Output
|
NO/NC(depends on part number)
|
Ambient humidity
|
35-95%RH
|
|
Supply voltage
|
10…30VDC
|
Switching frequency[F]
|
2000Hz
|
|
Standard target
|
Fe8*8*1t
|
Voltage withstand
|
…
|
|
Switch-point drifts[%Sr]
|
≤±10%
|
Insulation resistance
|
≥50MΩ
|
|
Hysteresis range[%Sr]
|
1…20%
|
Vibration resistance
|
10…50Hz(1.5mm)
|
|
Repeat accuracy[R]
|
≤3%
|
Degree of protection
|
IP67
|
|
Load current
|
≤150mA
|
Housing material
|
Stainless steel
|
|
Residual voltage
|
≤2.5V
|
Connection type
|
M8 connector
|
