NCA series low cost Inclination sensor

This product adopts the non-contact measuring principle, can output the real-time current attitude angle, simple to use, no need to find the two sides of a angle.

It is a ideal choice for Industrial automation control and platform measuring attitude.

Description

NCA series product features

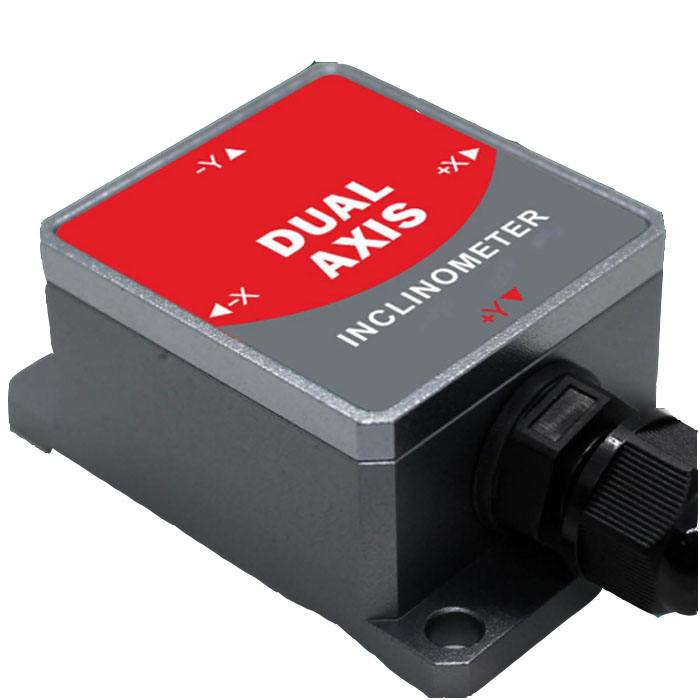

NCA326T	NCA316T	NCA320T
Dual-axis with digital output inclinometer	Single-axis with digital output inclinometer	Dual-axis with voltage output inclinometer
●Long-term stability 0.2°	●Measuring Range :±10～±90° optional	●Resolution: 0.1°
●Measuring Range :±10～±90° optional	●Single-Axis Inclinometer	●Dual-Axis Inclinometer
●DC+5V input	●Long-term stability 0.2°	●Wide voltage input: 9～36V
●Output mode RS232/RS485/TTL (optional)	●DC+5V input	●Output interface :0～5V
●Wide temperature working: -40～+85℃	●Output mode RS232/RS485/TTL (optional)	●Wide temperature working: -40～+85℃
●IP67 protection class	●Wide temperature working: -40～+85℃	●IP67 protection class
●Highly anti-vibration perfermance >3500g	●Resolution: 0.1°	● Measuring range±0°～±90°optional

NCA310T	NCA328T	NCA318T
Singlel-axis with voltage output inclinometer	Dual-axis current output inclinometer	Single-axis current output inclinometer
●Wide voltage input: 9～36V	● Measuring range±0°～±90° optional	●Full measuring range anyone within 360° optional
●Single-Axis Inclinometer	●Dual-Axis Inclinometer	●Single-Axis Inclinometer
●Output interface :0～5V	●Wide voltage input: 9～36V	●Wide voltage input: 9～36V
●Wide temperature working: -40～+85℃	●Output mode: 4~20mA	●Output mode: 4~20mA
●Resolution: 0.1°	●Wide temperature working: -40～+85℃	●Wide temperature working: -40～+85℃
●Small Volume : 55×37×24mm（customized）	●Resolution: 0.1°	●Resolution: 0.1°
●Highly anti-vibration performance >3500g	●Small Volume : 55×37×24mm（customized）	●Small Volume : 55×37×24mm（customized）
