TCA series high accuracy Inclination sensor

Home Automotive sensors TCA series high accuracy Inclination sensor

TCA series high accuracy Inclination sensor

TCA series are a small volume high accuracy inclinometer to the industrial field control , using RS485/RS232 Serial interface , MODBUS RTU standard protocol format .Built-in high-precision 24bit A /D differential converter, by 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt.The product integration of the latest technology to the main MEMS tilt unit, measuring range of +-180 degrees, full range accuracy of 0.01 degrees, can easily achieve biaxial and uniaxial inclination measurement

Automotive sensors, Inclination sensor

Description

TCA series product features

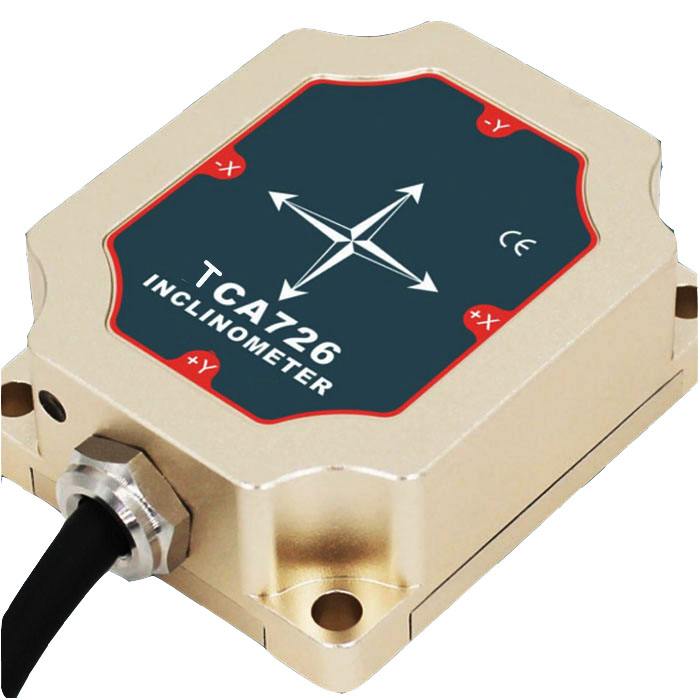

TCA716S/HCA726S TCA528T TCA526T
Inclinometer (MODBUS RTU Protocol) Dual-axis current output inclinometer Dual-axis digital output inclinometer
●Measuring Range :±1～±90° optional ●Measuring Range :±1～±90° optional ●Measuring Range :±1～±90° optional
●Single/dual Axis Inclinometer ●Dual-Axis Inclinometer ●Dual-Axis Inclinometer
●Wide voltage input: 9～36V ●Wide voltage input: 9～36V ●Wide voltage input: 9～36V
●Wide temperature working: -40～+85℃ ●Output interface : 4-20mA ●Wide temperature working: -40～+85℃
●Resolution: 0.001° ●Wide temperature working: -40～+85℃ ●Resolution: 0.001°
●IP67 protection class ●Resolution: 0.001° ●Small size :90×50×33mm（customized）
●Highly anti-vibration performance >100g ●Small Volume : L90×W50×H33mm（customized） ● Water-proof air-plug connector
TCA520T TCA518T TCA516T
Dual-axis voltage output inclinometer Single-axis current output inclinometer Single-axis digital output inclinometer
●Measuring Range :±1～±90° optional ●Measuring Range :±1～±90° optional ●Measuring Range :±1～±90° optional
●Dual-Axis Inclinometer ●Single-Axis Inclinometer ●Single-Axis Inclinometer
●Wide voltage input: 9～36V ●Wide voltage input: 9～36V ●Wide voltage input: 9～36V
●Wide temperature working: -40～+85℃ ●Wide temperature working: -40～+85℃ ●Resolution: 0.001°
●Output interface :0～5V ●Output interface : 4-20mA ●Wide temperature working: -40～+85℃
●High Resolution: 0.001° ●Resolution: 0.001° ●Highly anti-vibration performance >2000g
●Small Volume : L90mm×W50mm×H33mm（customized） ●Small Volume : 90×50×33mm（customized） ●Small size :90×50×33mm（customized）
